12-bay SAS/SATA HDD

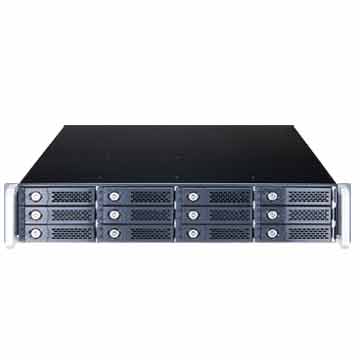

2U 12-bay SAS/SATA 硬碟儲存機箱

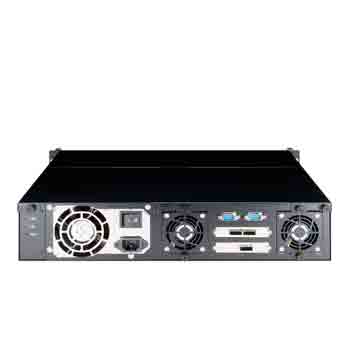

2U機架式，可裝12顆SAS或SATA (熱抽拔)硬碟儲存機箱。提供12顆SAS / SATA硬碟和高效能外接式資料儲存靈活的解決方案，可針對1080i 高清視頻影像編輯或任何視頻軟體應用。這台2U 12-bay SAS/SATA 硬碟儲存機箱具備3組miniSAS(SFF8088)連接埠，便利於客戶輕鬆安裝並且提供高速傳輸的功能。

特點:

  • 支援SAS及SATA HDD (3Gbps) 硬碟
  • 3組1200MB/sec的miniSAS主機連接埠（SFF8088），(直接連結，無內建SAS Expander)
  • 12顆SAS/SATA硬碟背板(可拆卸設計)
  • 高效能散熱風扇
  • 硬碟抽取盒上鎖設計，以確保硬碟安全
  • LED指示燈可顯示硬碟運作狀態
  • 具備環境監控功能(電源、風扇、溫度)及蜂鳴警報

產品型錄(Datasheet)                     使用手冊(User Manual)

Specifications

Host Interface SAS/SATA (Two miniSAS connector)
HDD InterfaceSAS/SATA
Data Transfer RateSAS/ SATA 3 Gbps
LED DisplayWhite – Power on indicator
Blue – Busy (HDD Accessing) indicator
LED Display for Environmental MonitoringFAN normal – green; fail – red (too slow rpm or stop) TEMP normal – green; over 55°C – red
Dimension(L):45.6 cm (W):48.2 cm (H):8.85 cm
MaterialHeavy-duty cold-rolled steel
Power Supply400W Single PSU ( Can be changed to mini Redundant) Input: 90 – 230 VAC 50- 60 Hz
Output: +5V and +12V DC
CoolingTwo set of 6 x 6  x  2.5 cm Hot-Swappable Fans
O.S. supportOS Independent

Package Content

Enclosure x 1
HDD Tray x 12
mini SAS Cable x 3 (Optional)
Power Cord x 1
Manual CD-ROM x1
Hard Disk Drive mounting screw x 48
Key for HDD tray x 2

Optional Accessories

NS970SQuad internal miniSAS(SFF8087) to Quad external(SFF8088) Adapter Solution for  HighPoint Technologies –  RocketRAID32203Ware  – 9650SE-12ML / 9650SE-16ML / 9650SE-24MLAdaptec – RAID 31205, RAID 31605
NS970S-SGPIOQuad internal miniSAS (SFF8087) to Quad external(SFF8088) Adapter with RS-232(SGPIO) cable Solution for Areca –  ARC-1231ML / ARC-1261ML / ARC-1280ML
AAMMM1                     External miniSAS(SFF8088) to miniSAS(SFF8088), 1m  Solution for Host Connector External miniSAS (SFF8088)

Application

Internal miniSAS to External miniSAS Converter
