4-bay SAS/SATA HDD

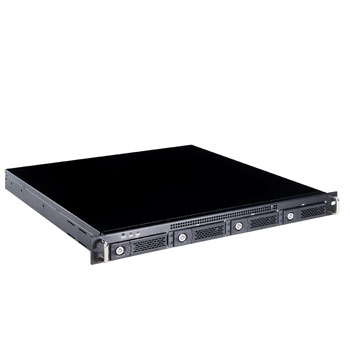

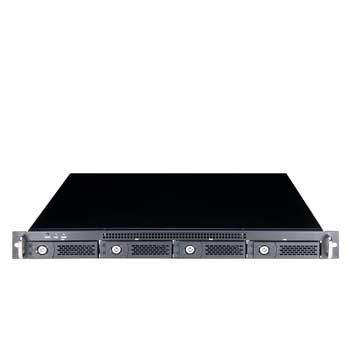

1U 4-bay SAS/SATA 硬碟儲存機箱

1U機架式，可裝四顆SAS或SATA (熱抽拔)硬碟儲存機箱。提供客戶低成本、高效能(SAS傳輸1200MB/sec)的儲存解決方案。

特點:

  • 支援SAS及SATA HDD (3Gbps) 硬碟
  • 高效能12Gbps(1200MB/sec)的miniSAS主機連接埠（SFF8088）
  • 4顆SAS/SATA硬碟背板(可拆卸設計)
  • 兩組靜音熱抽拔風扇
  • 硬碟抽取盒上鎖設計，以確保硬碟安全
  • LED指示燈可顯示硬碟運作狀態
  • 具備環境監控功能(電源、風扇、溫度)及蜂鳴警報

產品型錄(Datasheet)                     使用手冊(User Manual)

Specifications

Host Interface          miniSAS(SFF8088) x 1
HDD InterfaceSAS/SATA I/II
Data Transfer RateSAS 3Gbps; SATA 1.5/3 Gbps
LED DisplayWhite – Power on indicator
Blue – Busy (HDD Accessing) indicator
LED Display for Environmental MonitoringPOWER on LED – white
FAN normal – green; fail – red (too slow rpm or stop)
TEMP normal – green; over 55°C – red
Dimension(W):48.2cm (H):4.4cm (D):45.3cm
MaterialHeavy-duty cold-rolled steel hosing, front panel & Plastic tray face
Power Supply220W
Input: 90 – 230 VAC 50- 60 Hz
Output: +5V and +12V DC
CoolingTwo 75 x 75 x 28 mm Hot-Swappble Blowers
O.S. supportOS Independent

Application Diagram

External SAS Connection Diagram

Accessories

Cable
AAMMM1                       External miniSAS (SFF8088) to miniSAS (SFF8088), Length: 1m Solution for Host Connector External miniSAS (SFF8088)
AAMSM1MultiLane Screw (SFF8470) to miniSAS (SFF8088), Length: 1m Solution for Host Connector MultiLane (SFF8470)
Tray
ANNA920C0340           Spare Black Color Tray with Retail Package
