8-bay SAS/SATA HDD

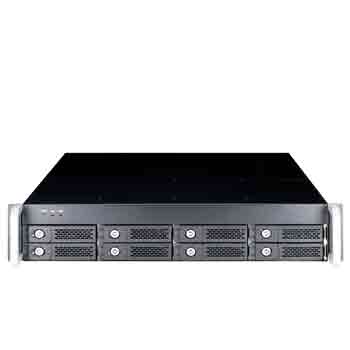

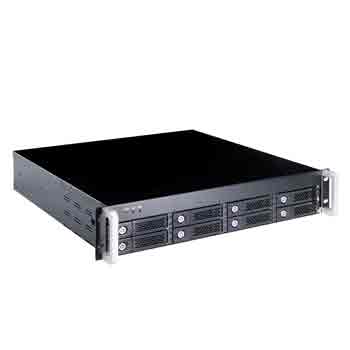

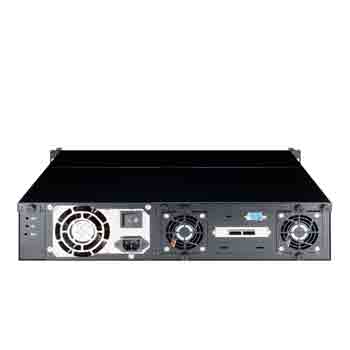

2U 8-bay SAS/SATA 硬碟儲存機箱

2U機架式，可裝8顆SAS或SATA (熱抽拔)硬碟儲存機箱。提供客戶8顆SAS / SATA硬碟和高效能外接式資料儲存靈活的解決方案，可針對1080i 高清視頻影像編輯或任何視頻軟體應用。這台2U 8-bay SAS/SATA 硬碟儲存機箱具備兩組miniSAS(SFF8088)連接埠，便利於客戶輕鬆安裝並且提供高速傳輸的功能。

特點:

  • 支援SAS及SATA HDD (3Gbps) 硬碟
  • 兩組1200MB/sec的miniSAS主機連接埠（SFF8088）
  • 8顆SAS/SATA硬碟背板(可拆卸設計)
  • 兩組散熱風扇
  • 硬碟抽取盒上鎖設計，以確保硬碟安全
  • LED指示燈可顯示硬碟運作狀態
  • 具備環境監控功能(電源、風扇、溫度)及蜂鳴警報

產品型錄(Datasheet)                     使用手冊(User Manual)

Specifications

Host Interface SAS/SATA (Two miniSAS connector)
HDD InterfaceSAS/SATA
Data Transfer RateSAS/ SATA 3 Gbps
LED DisplayWhite – Power on indicator Blue – Busy (HDD Accessing) indicator
LED Display for Environmental MonitoringFAN normal – green; fail – red (too slow rpm or stop) TEMP normal – green; over 55°C – red
Dimension(W):48.2 cm (H):8.85 cm (D):45.6 cm
MaterialHeavy-duty cold-rolled steel
Power Supply400W Single PSU ( Can be changed to mini Redundant) Input: 90 – 230 VAC 50- 60 Hz
Output: +5V and +12V DC
CoolingTwo set of 6 x 6  x  2.5 cm Hot-Swappable Fans
O.S. supportOS Independent

Application Diagram

External SAS Connection Diagram

Accessories

Cable
AAMMM1                       External miniSAS (SFF8088) to miniSAS (SFF8088), Length: 1m Solution for Host Connector External miniSAS (SFF8088)
AAMSM1MultiLane Screw (SFF8470) to miniSAS (SFF8088), Length: 1m Solution for Host Connector MultiLane (SFF8470)
Tray
ANNA920C0340           Spare Black Color Tray with Retail Package
