LS-16E-D

3U Dual Node 16 bays + 4x 2.5 DP/UP Server

硬體規格

Supported CPU	UP E5-2600 Xeon V2 (Ivy Bridge) or E5-2600 Xeon DP V2 (Ivy Bridge)
Chipset	UP version: Intel C600-A DP version: Intel C602-A
Supported RAM	Per node: UP E5-2600 8 x DDR3 1333/1600/1866 up to 256GB or up to 512GB DDR3 133/1600/1866 16x DP E5-2600

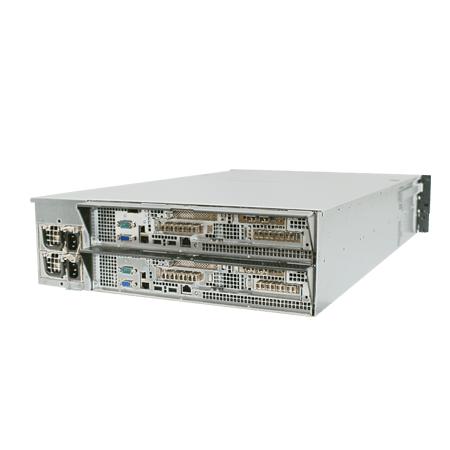

I/O Interface	UP: Each node has VGA, Four GigE, 2xUSB 2.0 DP: Each node has VGA, Serial, Four GigE, 4x USB 2.0, 1x Management RJ45

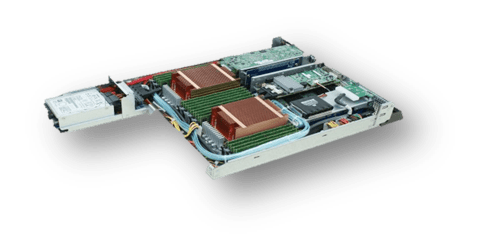

Expansion Slots	UP MB: 3x PCIeGen3 Expansion slots (1x for storage use) for SAS/FC/IB Host options and optional Intel dual 10Gb I/O or FDR IB/40GbE Rear I/O Module or DP MB: onboard I/O and 5x PCIe3 x8 Expansion slots (1x slot for storage controller,1x for clustering adapter)
Storage	16x 3.5” and 4x 2.5” 7mm SSD 3Gbps/6Gbps SAS dual port HDD bays Optional LSI Syncro CS for Hardware RAID
Server Management	UP version: Optional IPMI with iKVM module DP version: IPMI with iKVM onboard
Cooling	Four Redundant 120mm hot-swap fan modules with Smart Fan Control for optimal cooling

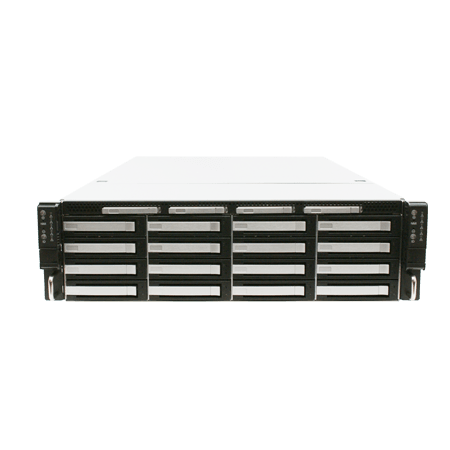

Front Panel Display	Each node has: 1 x Power On/Off switch & LED 1 x Locate switch & LED 1 x Reset switch 1 x System warning LED 4x LAN LED
Expander	LSI SAS2x36 6G SAS Expander module supports LSI Syncro CS and HA DAS connections
Power	1+1 1200W AC/DC or -48VDC/DC high efficiency redundant power supplies
Backplane	16-Bay 6G SAS Dual-Ported backplane and 4 2.5” SATA to SAS interposer
Gross Weight	95lbs w/o Hard Drives
Dimension	System: 29 “x19″ x5.25 “(LxWxH) Packaging: 35.5 “x 29″ x12 “(LxWxH)
HTS Code	8473 30 5100
ECCN	4A994
Environmental	Operating Temperature: 0°C to 35°C Non-Operating Temperature: -20°C to 70°C Humidity: 5% to 95% non-condensing
Compliance	CE, FCC Class A, RoHS 6/6 compliant
Compatible OS	Linux RedHat Enterprise 6 64bit, Suse Linux Enterprise Server 11.2 64bit, VMWare ESX 4.1/ESXi4.1, Windows 2008 R2, Windows Server 2012, CentOS 5.6, Ubuntu 11.10

可選購作業系統

•  EverRun Enterprise
• Windows Server 2012
