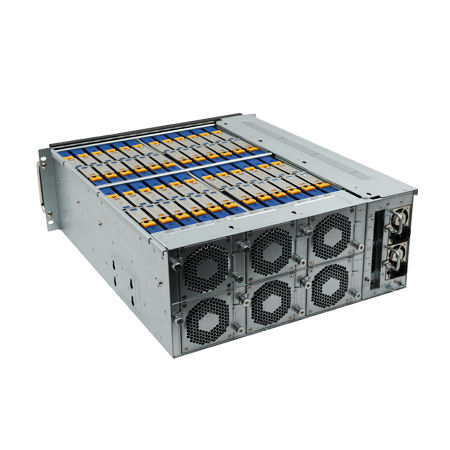

LS-24E-X

4U Short-depth SAS/SATA JBOD

I/O Interface4x SFF8644 for Up Links
4x SFF8644 for Down Links
Storage48 x 3.5” 6G Single-Port SAS/SATA HDD bays
Server ManagementHDD Status/Indentifier LEDs
Smart Fan
Thermal Monitor
HDD Monitor
Voltage Monitor
Inband SES supported

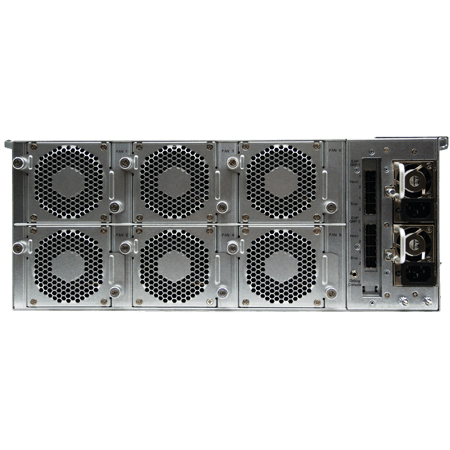

Cooling6x 80mm hot-swap exhaust fans with Smart Fan control for optimized cooling
Front Panel DisplayPower On/Off
System Health Status
HDD Status
Expander4 x LSI SAS2x36 expanders
Power1+1 1200W AC/DC or 1000W DC/DC high efficiency redundant power supplies
BackplaneTwo 24-bay 6G SAS Single-Ported backplanes
Gross Weight60lbs w/o HDDs
DimensionSystem: 21”x19”x7” (LxWxH)
Packaging: 43”x 25”x27”(LxWxH) Palletized
HTS Code8473 30 5100
ECCN4A994
EnvironmentalOperating Temperature: 0°C to 35°C
Non-Operating Temperature: -20°C to 70°C
Humidity: 5% to 95% non-condensing
ComplianceRoHS 6/6 compliant
Compatible OSLinux RedHat Enterprise 6 64bit, Suse
Linux Enterprise Server 11.2 64bit,
VMWare ESX 4.1/ESXi4.1, Windows
2008 R2, Windows Server 2012, CentOS 5.6,
Ubuntu 11.10
