LS-4D-S

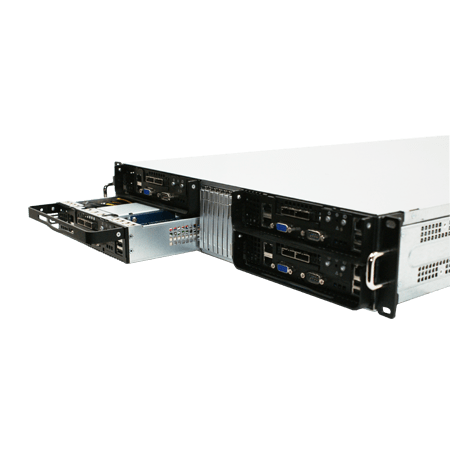

2U4Node Front I/O 8x 2.5

Motherboard / Controller	4x off the shelf half width DP motherboards up to 19” depth
Supported CPU	Single or dual socket 2011 Intel® Xeon® E5 2600 V2 (Ivy Bridge) processors
Chipset	UP version: Intel C600-A DP version: Intel C602-A
Supported RAM	Per node: UP E5-2600 8 x 1333/1600/1866 DDR3 up to 256GB or DP E5-2600 16x 133/1600/1866 DDR3 up to 512GB
I/O Interface	UP: Each node has VGA, Four GigE, 2xUSB 2.0 DP: Each node has VGA, Serial, Two GigE, 2x USB 2.0, 1x Management RJ45, 1x Optional FDR
Expansion Slots	1 x PCIe Gen3 x8 Low Profile
Storage	8x 2.5” hot swap 7mm Z height bays 6Gb SATA SSD or HDD; two per node
Server Management	UP version: Optional IPMI with iKVM module DP version: IPMI with iKVM onboard

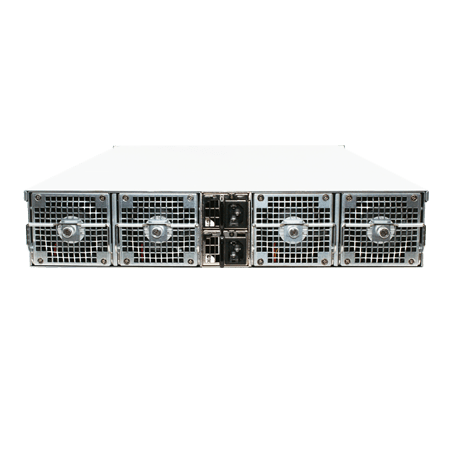

Cooling	4x Hot swap high speed 80mm PWM exhaust fans, or depopulated to use Rackmounted cooling fans
Front Panel Display	Each node has: 1 x Power On/Off switch & LED 1 x Locate switch & LED 1 x Reset switch 1 x System warning LED
Power	1200W 4 output high efficiency redundant power supply, or optional 12VDC input PDB for use with Rack PDU
Backplane	2 x 4 bay direct attached 3G/6G SATA support
Gross Weight	69lbs w/o HDDs
Dimension	System: 29”x19”x3.5” (LxWxH) Packaging: 36” x 24.5” x 10.5” (LxWxH)
HTS Code	8473 30 5100
ECCN	4A994
Environmental	Operating Temperature: 0°C to 35°C Non-Operating Temperature: -20°C to 70°C Humidity: 5% to 95% non-condensing
Compliance	RoHS 6/6 compliant
Compatible OS	Linux RedHat Enterprise 6 64bit, Suse Linux Enterprise Server 11.2 64bit, VMWare ESX 4.1/ESXi4.1, Windows 2008 R2, Windows Server 2012, CentOS 5.6, Ubuntu 11.10
