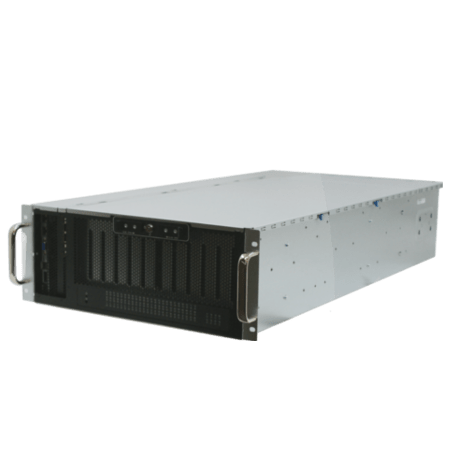

LS-60E-X

4U 72 bays SAS3 12Gb/s UP/DP Server

應用

•  數位影像資料
•  運算資料儲存
•  iSCSI
•  NAS
•  Infrastructure as a Service Cloud
•  Private Cloud
•  Big Data
•  Disaster Recovery

硬體規格

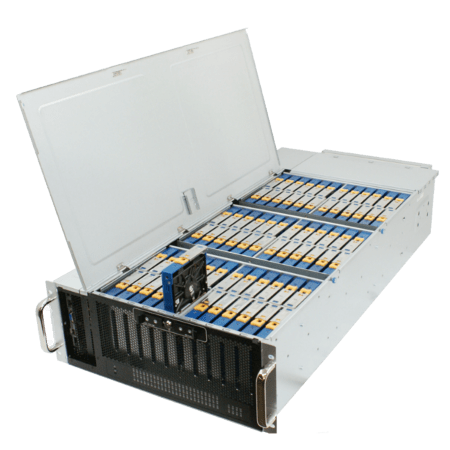

Key Features	4U with 72x top-load 12G SAS hot-swap HDD optional 8x 2.5”-7mm hot-swap SSD bays Support front-I/O E3 or E5 based platform Rear SAS expansion ports to JBOD § Dedicated airflows for motherboard and HDD sector
Motherboard / Controller	S2600WP DP E5 Xeon OEM UP E3 Xeon
Supported CPU	Dual 2011 Intel® Xeon® E5 2600 V2 or UP E3-1200 Xeon V3 (Haswell)
Chipset
Supported RAM
I/O Interface
Expansion Slots	DP – 1x PCIe X16 LP facing front + rear 1x PCIe X8 LP for storage controller or UP – 1x PCIe X16 LP facing front + optional dual-10Gb I/O module + optional onboard LSI SAS2308 IOC Two 4X 12G SAS expansion links – rear-facing
Storage	72 x 3.5” 12G Single-Port SAS/SATA HDD bays 8 x 2.5” 7mm SSD bays
graphic
Server Management	IPMI w/iKVM for MB & SES by the SAS Expander

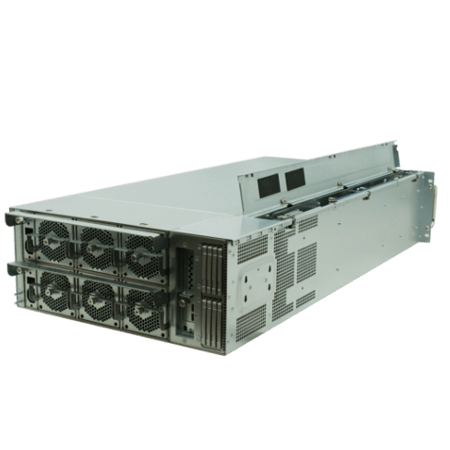

Cooling	6x 80mm hot-swap exhaust fans for HDD bays + 3x 40x48mm fans for MB module
Front Panel Display
Expander
Power	1+1 1200W AC/DC high efficiency redundant power supplies
Backplane	3 x 24-bay 12G SAS Single-Ported backplanes
Gross Weight	36”x19”x7” (LxWxH)
Dimension	System: 36”x19”x7” (LxWxH) Package: 45”x 25”x23”(LxWxH) Palletized
HTS Code	8473 30 5100
ECCN	4A994
Environmental	Operating Temperature: 0°C to 35°C Non-Operating Temperature: -20°C to 70°C Humidity: 5% to 95% non-condensing
Compliance	RoHS 6/6 compliant
Compatible OS	Linux RedHat Enterprise 6 64bit, Suse Linux Enterprise Server 11.2 64bit, VMWare ESX 4.1/ESXi4.1, Windows 2008 R2, Windows Server 2012, CentOS 5.6, Ubuntu 11.10
