LS-60J-S

4U 60 Bay SAS JBOD

Application

  • 近線數據庫存檔擴展存儲
  • 高性能HPC(High-performance computingsystem)直接附加存儲
  • 共享工作站SAS SAN存儲，視頻後期剪輯製作儲存
  • 數字內容源數據庫儲存
  • 雲端應用SaaS存儲

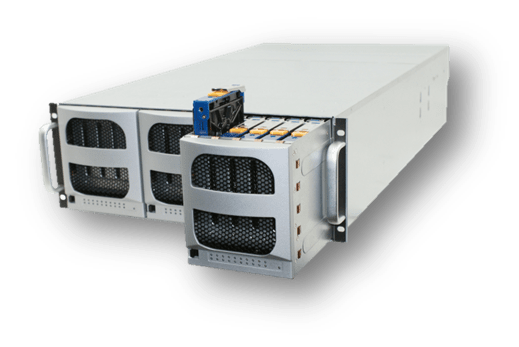

4U HA Redundant JBOD w/ 60x 3.5”SAS HDD bays

規格

System ControllerThree 20-bay 12G SAS dual-ported backplances
Storage60x 3.5″ top-loaded HDD bays supports both 12Gbps and 6Gbps SAS/SATA HDD
CPU supportN/A
MemoryN/A
ConnectivityTotal 16x SFF8644 ports for up to 192Gbps of SAS bandwidth to Host and Expansion connections
ManagementHDD Status/Indentifer LEDs, Smart Fan, Thermal monitor, HDD monitor, Voltage Monitor, Inband SES support
CoolingEight 80mm hot-swappalbe exhaust fan modules with Smart Fan Controller for optimal cooling
Form Factor4RU – 31 “depth x 19″ x7″
Power3+1 1350W AC/DC or -48V DC/DC high efficiency redundant power supplies
BackplaneThree 20-bay 12G SAS dual-ported backplances
Gross Weight80lbs w/o Hard drives
Packaging dimension48″x25″x27″  (LxWxH)
HTS Code8473 30 5100
ECCN4A994
EnvironmentalOperating Temperature: 0 ° C to 35 ° C
 Non-Operating Temperature: -20 ° C to 70 ° C
 Humidity: 5% to 95% non-condensing
ComplianceCE, FCC Class A, RoHS 6/6 compliant
