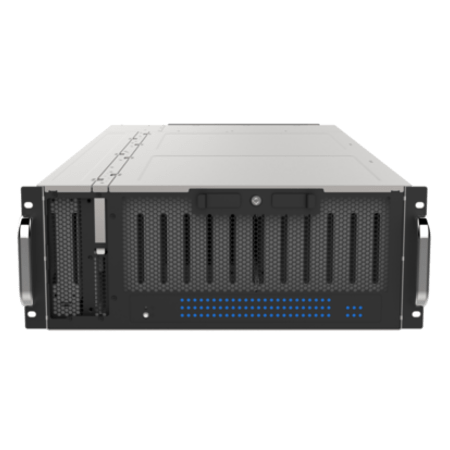

LS-60J-X

4U 78 bays SAS3 12Gb/s Expander JBOD

Form Factor	4U with 78 top-load 12G SAS hot-swap HDD
Hot-swappability	Dual Hot-swappable controller board Dual Hot-swappable power supplies
Host Interface
Expansion Interface	DP: 1x PCIe X16 LP facing front + rear 1x PCIe X8 LP for storage controller or UP: 1x PCIe X16 LP facing front + optional dual-10Gb I/O module + optional onboard LSI SAS2308 IOC Two 4X 12G SAS expansion links – rear-facing
Storage Expansion	Muliple SAS JBOD expansion supported
Storage Type
Supported OS
Physical & Environment	Operating Temperature: 0°C to 35°C Non-Operating Temperature: -20°C to 70°C Humidity: 5% to 95% non-condensing
Power & Cooling	1+1 1200W AC/DC or 1000W DC/DC Redundant power supplies Smart fan control for optimal cooling
Dimension (H x W x D)	System: 36”x19”x7” (LxWxH) Packaging: 45”x 25”x23”(LxWxH) Palletized
