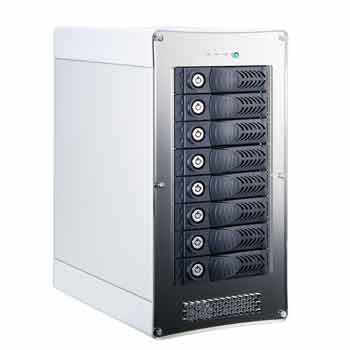

Tower 8-bay SAS/SATA HDD

Tower 直立式8-bay SAS/SATA 硬碟儲存機箱

Tower，可裝8顆SAS或SATA (熱抽拔)硬碟儲存機箱。提供客戶低成本、高效能(SAS傳輸1200MB/sec)的儲存解決方案。提供miniSAS (SFF8088)連接埠，便利於客戶輕鬆安裝及高速傳輸。

特點:

  • 支援SAS及SATA HDD (3Gbps) 硬碟
  • 高效能12Gbps(1200MB/sec)的miniSAS主機連接埠（SFF8088）
  • 8顆SAS/SATA硬碟背板(可拆卸設計)
  • 具備散熱風扇
  • 硬碟抽取盒上鎖設計，以確保硬碟安全
  • LED指示燈可顯示硬碟運作狀態
  • 具備環境監控功能(電源、風扇、溫度)及蜂鳴警報

產品型錄(Datasheet)                     使用手冊(User Manual)

Specifications

Host Interface          SAS/SATA II (Two MultilaneX4 connector)
HDD InterfaceSAS / SATA I/II
Data Transfer RateSAS 3Gbps & SATA 1.5/3 Gbps
Hot-SwapBoth on Host and Device
LED DisplayGreen – Power on indicator Blue – Busy (HDD Accessing) indicator
LED Display for Environmental MonitoringPOWER on LED – white
FAN normal – green; fail – red (too slow rpm or stop) TEMP normal – green; over 55°C – red
Dimension(D):23.15cm (W):15.68cm (H):31.0cm
MaterialAnodized Aluminum with Mirror Acrylic plastic front panel & Plastic tray face
Power Supply300W (High reliability of IPC form-factor) Input: 90 – 230 VAC 50- 60 Hz
Output: +5V and +12V DC

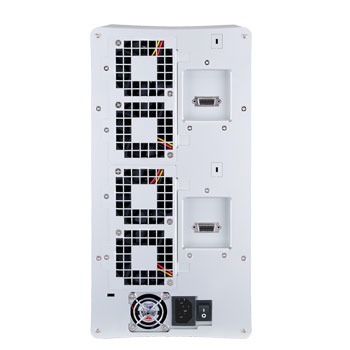

CoolingFour 60 x 60 x 15 mm Cooling Fans (Without any HDD installed, fan don’t spin up.)
O.S. supportOS Independent

Optional Accessories

AAMSM1                                        MultiLane Screw (SFF8470) to miniSAS (SFF8088), Length: 1m   For Host Connector miniSAS (SFF8088)
AAMSS1MultiLane Screw (SFF8470) to MultiLane Screw (SFF8470), Length: 1m   For Host Connector MultiLane Screw (SFF8470)
Tray
ANNA411B0370          Spare Black Color Tray with Retail Package
